Our goal is to provide our customers with a seamless export process that saves them time and effort. We take care of all aspects of exporting Atlas Copco DrillAir compressors to e.g. Switzerland, including:
Sourcing: we work closely with Atlas Copco to ensure that our customers have access to the latest models and configurations of DrillAir compressors to suit their requirements.
Customs clearance: Our customs clearance experts support our customers in completing all necessary customs formalities to ensure a smooth import of the compressors, e.g. to Switzerland.
Transport: We organize the safe transport of the compressors from the manufacturer to their final destination, e.g. in Switzerland, to ensure that they arrive on time and intact.
Your trusted partner for the export of construction compressors
With our many years of experience in exporting construction compressors and our dedicated team of professionals, we are the trusted partner for drilling companies in Switzerland, for example. We stand by our customers to ensure that they receive the best equipment and can successfully complete their projects.
Volume flow/m³: 20
Working pressure/bar: 16 - 25
Power/kW: 231
Engine: Cummins QSB6.7
Emission: Stage V
Tank capacity: 270 liters
Dimensions in mm : L x W H 5373 x 1702 x 2030
incl. tandem chassis
the alternative to the Compair C 200 ts-24

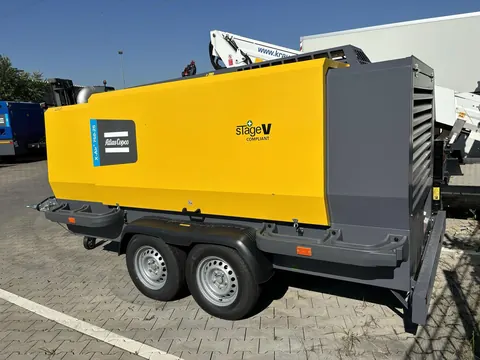

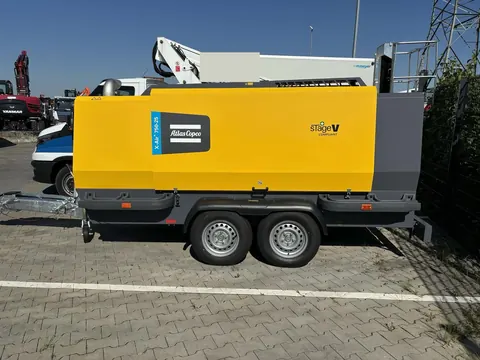

Technical data Atlas Copco X-Air⁺ 750-25
Technical data value X-Air⁺ 750-25
Operating pressure bar (g) 16-25
Volume flow (FAD) m³/min 20-19
Volume flow (FAD) cfm 701-678
Volume flow (FAD) l/s 331-320
Engine
Make and model Cummins QSB6.7
Emission stage Exhaust stage V
Power at full load kW 231
Rated speed rpm 1100-1890
Fuel consumption
Flow rate 100 % l/h 50.02
Flow rate 75 % l/h 37.54
Specific fuel consumption g/m 3 36.3
Fuel tank l 270
Dimensions
Chassis (L x W x H) mm 5373 × 1702 × 2030
Weight with chassis kg 3500
Support mounting (L x W x H) mm 3603 × 1750 × 1691
Weight of support assembly kg 3500
A new standard for mobile compressed air solutions that deliver outstanding drilling performance
Meet the X-Air⁺ 750-25, a groundbreaking addition to the DrillAir product family. This advanced product represents a major step forward in highly productive and efficient mobile compressed air solutions and sets a new industry benchmark for medium depth drilling applications. The X-Air⁺ 750-25 is characterized by its strong focus on efficiency and is therefore at least 10 % more efficient than its predecessor. This reduces the customer's total cost of ownership and significantly improves the carbon footprint of the entire DrillAir range.
The DrillAir X-Air⁺ 750-25 is the best choice for applications such as civil engineering, well drilling, geothermal and foundation drilling due to its mobility, compact size, drilling speed and reliability in demanding environments.
Compact with higher efficiency
X-Air⁺ 750-25 mobile compressor from Atlas Copco for the mining industry
The X-Air⁺ 750-25 heralds a new era of compact solutions for medium-deep drilling, as it is fully flexible with a pressure between 16 and 25 bar and a flow between 20 and 19 m³/min (350 and 320 l/s). Developed with a highly efficient 6.7-liter Cummins engine, it is robust and powerful with half the footprint and weight of its predecessor (from 5.5 to 3.5 t), which in turn increases mobility and versatility.
New design with increased durability
Two mobile compressors from Atlas Copco optimized for drilling work
The X-Air⁺ 750-25 is characterized by unparalleled fuel efficiency, as it is 10 % more efficient than its predecessor. With newly designed components, such as high-strength steel and aluminum, durability can also be guaranteed.
The double axle provides additional stability and makes transportation easier.
With AirXpert technology

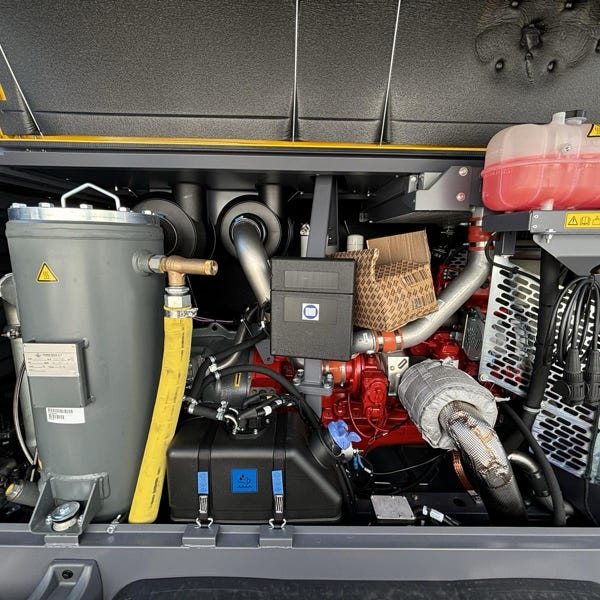

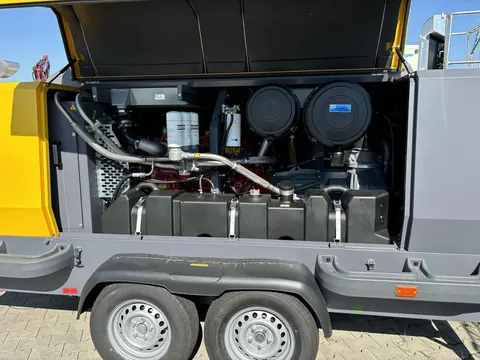

Mobile compressor X-Air⁺ 750-25 from Atlas Copco with open protective cover
At the heart of the unit is the AirXpert technology, which offers at least 10 % higher efficiency compared to the previous model. Through automatic control, this technology adjusts operating parameters based on real-time flow requirements, resulting in a significant reduction in fuel and energy consumption.
The dynamic flow boost function increases the flow rate when flushing and filling the drill pipe. This enables faster flushing, faster filling of the drill pipe and faster completion of a well.
More efficiency with the X-Air⁺ 750-25 thanks to intelligent control

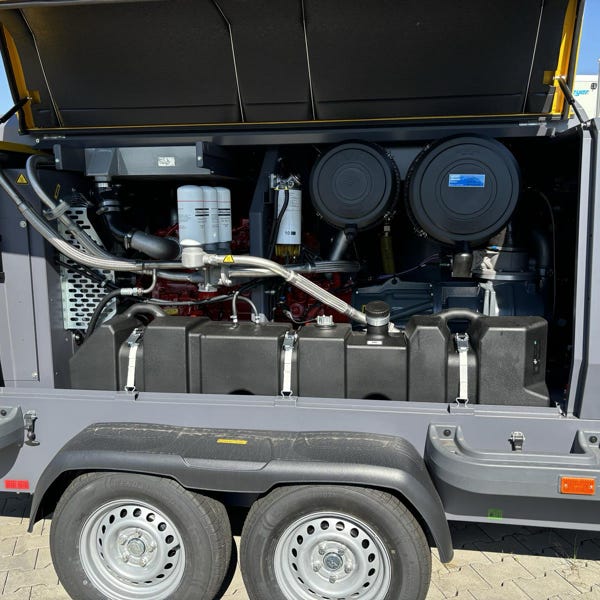

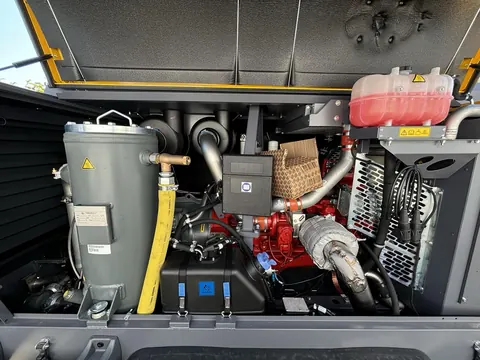

Mobile compressor X-Air⁺ 750-25 from Atlas Copco with open protective cover
Each mobile compressor is equipped with a performance-optimizing control system. In addition, the X-Air⁺ 750-25 has a brand new addition: the Xc2004.
With an intuitive user interface, forward-thinking design, advanced computing power and enhanced connectivity, the Xc2004 offers our customers unparalleled efficiency.
The **Atlas Copco X-Air⁺ 750-25** is a special high-performance compressor used in various demanding industries. Due to its high pressure output and variable air pressure of up to 25 bar, it is suitable for particularly specialized applications. Here are some industries that particularly benefit from the advantages of the **X-Air⁺ 750-25**:
**Oil and gas industry**
The oil and gas industry has high demands on mobile compressors for drilling and maintenance work. The Atlas Copco X-Air⁺ 750-25 is used specifically in deep drilling projects and for pressure testing pipelines. Its high pressure capacity (up to 25 bar) makes it ideal for applications such as
- Pressure tests on oil and gas pipelines
- Supply of pneumatic drilling equipment for deep drilling
- Maintenance and cleaning of pipelines (pipeline pigging)
**Mining and quarries**
In mining, the Atlas Copco X-Air⁺ 750-25 is ideal for operating heavy drilling equipment and tools used in deep and hard rock formations. This compressor is particularly indispensable in deep mines and for drilling work that requires very high air pressures. Typical applications are
- Deep drilling in solid rock formations
- Blasting preparations
- Ventilation of underground mines
**Geothermal energy and deep drilling technology**
For geothermal energy, where extremely deep drilling is required to extract geothermal energy, the Atlas Copco X-Air⁺ 750-25 is used to power high-pressure drilling tools. This industry requires specialized compressors with high pressure capacities to penetrate the boreholes efficiently and safely. Areas of application are
- Deep drilling for the development of geothermal energy
- Drilling work for the installation of geothermal probes
4. tunnel construction
In tunnel construction, the demand for high-pressure air for large pneumatic drilling machines and ventilation systems is high. The Atlas Copco X-Air⁺ 750-25 supplies sufficient compressed air to operate tunnel boring machines and other heavy equipment at extreme depths. It is used for:
- Tunnel drilling in rocky subsoil
- Ventilation of tunnel systems
- Operation of pneumatic drilling and excavation equipment
**Maritime industry and offshore projects**
The maritime industry, especially offshore projects, requires powerful compressors for underwater work and for the maintenance of drilling platforms. The X-Air⁺ 750-25 is ideal for this environment as it ensures a stable compressed air supply under extreme conditions. Possible applications include:
- Underwater drilling and blasting
- Maintenance work on offshore platforms
- Underwater pipelines and pressure tests
**Energy and power plant industry**
The X-Air⁺ 750-25 is used for pressure testing, cleaning and plant maintenance in the power generation industry, particularly in the construction and maintenance of power plants. Its high pressure capacity enables:
- Pressure testing of high-pressure pipes and systems in power plants
- Cleaning boilers and turbines
- Maintenance work on energy-generating machines
**Chemical and petrochemical industry**
In the chemical and petrochemical industry, specialized compressors such as the Atlas Copco X-Air⁺ 750-25 are required to carry out pressure tests and maintenance work on reactors, pressure tanks and piping systems. The high pressure of the compressor makes it ideal for:
- Pressure tests on reactors and chemical plants
- Maintenance and servicing of high-pressure piping systems
- Cleaning and drying pipelines
**Water management and pressure tests**
The water industry also requires high-pressure compressors for pressure testing water pipes, tanks and systems. The Atlas Copco X-Air⁺ 750-25 is particularly well suited for large piping systems and high pressure testing. Specific applications include:
- Pressure testing of water pipelines and high pressure tanks
- Cleaning of large water tanks and reservoirs
- Support for the installation and maintenance of desalination plants
**Aerospace and aviation industry**
In the aerospace industry, high-pressure compressors are required for testing aircraft components, especially for pressure testing fuel tanks and other critical systems. The X-Air⁺ 750-25 enables precise and powerful compressed air supply for:
- Pressure testing of aircraft and rocket parts
- Maintenance and cleaning of aircraft components
- Operation of pneumatic tools in production and maintenance
The **Atlas Copco X-Air⁺ 750-25** is a high-performance compressor designed specifically for industries that require extremely high pressure requirements and robust, reliable equipment. From the oil and gas industry to tunnelling, chemical and geothermal applications, this compressor offers the compressed air performance needed to complete complex and demanding projects. Its flexible operating range and high efficiency make it an indispensable solution for specialized industrial applications.
