Technical data XAVS 378

- Volume flow m3/min 20.5

- Operating pressure bar 12

- Sound power dB (A) 72

- Drive motor Cummins type B6.7 stage V

- Rated power KW 187

- Speed rpm 1100 - 1750

- Operating weight of basic system (full tank) KG 3500

More power with lower operating costs

With the XAHS 408 and XAVS 378 you can increase your

productivity in sandblasting, drilling in marble quarries

marble quarries, blasthole drilling, drilling in special underground

special civil engineering and many other applications

increase. With a volume flow of up to 24 m3/min at 8.6 bar, this compact

this compact compressor (in full configuration still under

3500 kg) is your perfect partner.

Power boost

The combination of the Atlas Copco screw element

with a stage V-compliant motor increases the available

volume flow increases. This is why these compressors are up to 6 %

more efficient than comparable models.

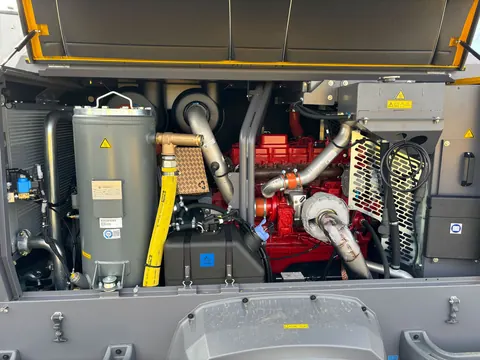

Easy maintenance

We have been able to reduce maintenance-related downtime to a

to a minimum. The easy-to-open pressure

pressure tank cover allows the air/oil separator to be replaced

in less than an hour and you can even replace the oil filter

oil filter can even be replaced without any tools thanks to the patented bayonet lock. The large side flaps also provide

easy access to all maintenance points.

Protection for your investment

The XC2003 control unit with PACE technology allows you to

you to adjust the pressure in steps of 0.1 bar between 5 and

14 bar. This means that your compressor can be used for

a wide range of applications, which significantly

significantly improves its utilization.

Atlas Copco also pays particular attention to reliability.

reliability. All components are tested for the

tested for the toughest operating environments. The control unit

protection class IP65 against the ingress of dust and water.

dust and water, the cover is protected against rust by a three-layer

protected against rust by a three-layer coating of corrosivity category C3.

These features increase the resale value of your

investment cycle increase the resale value of your

equipment.

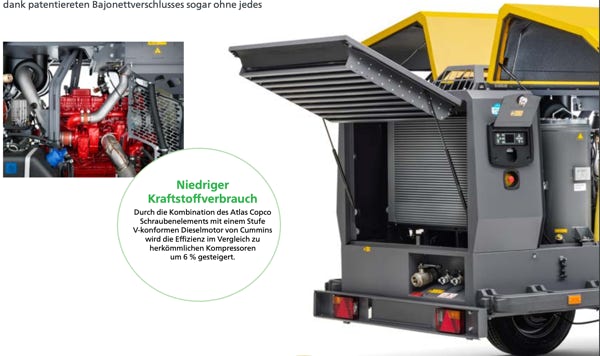

Low

fuel consumption

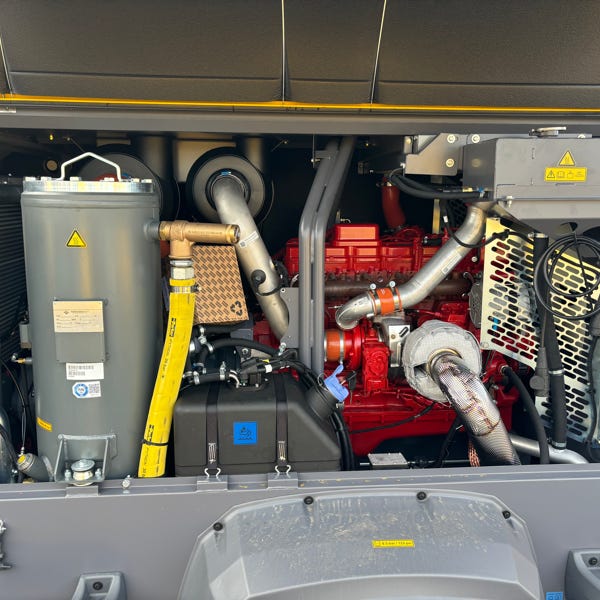

Thanks to the combination of the Atlas Copco

screw element with a Stage

V-compliant diesel engine from Cummins

the efficiency compared to

conventional compressors

increased by 6 %.

With consideration for

the environment

Our compressors have

have a closed base tray as standard

base tray with 110% collection volume as standard.

This prevents environmental pollution if

environmental pollution in the event of

operating fluids at the place of use. The

The drain plugs are centrally

centrally located.

Robust construction

These compressors have been

laboratory and under realistic

conditions to ensure optimum

optimum performance

performance. They are up to the toughest

operating conditions.

A three-layer coating

(corrosivity category C3) protects your

their entire bodywork and

extends the service life.

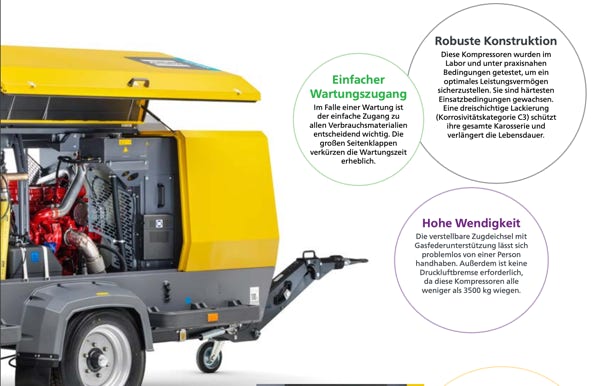

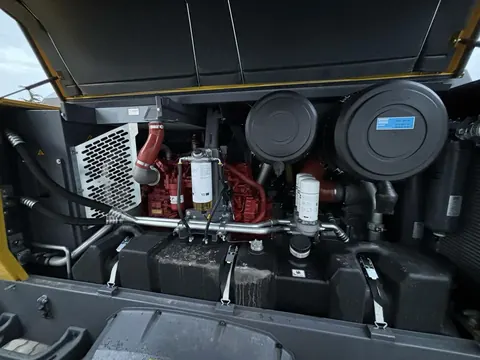

Easy

maintenance access

In the event of maintenance

easy access to

all consumables

is crucial. The

large side flaps

shorten the maintenance time

considerably.

High maneuverability

The adjustable drawbar with

with gas spring support can be

easily handled by one person

by one person. In addition, no

air brake is required,

as these compressors all

weigh less than 3500 kg.

Less downtime

The interval for compressor oil changes

has been extended to up to 1000 hours or

every two years. Less maintenance

maintenance costs and longer

service life of the consumables

reduce operating costs and

improve availability. Easy

pressure vessel lid for replacing the

replacement of the air/oil separator

within just one hour.

XC2003 control unit

The LCD display of the intuitive

XC2003 control unit facilitates

operation, shows the utilization

of the compressor and signals

when it is time for scheduled

maintenance activities. The

control unit is protected according to protection class

IP65 against the ingress of dust and water.

and water. This means that the

compressors can be used even under the

conditions.

With this control system, the

working pressure in just one minute.

in just one minute.

The most flexible wins...

PACE technology redefines the relationship between pressure and volume flow. One compressor with PACE technology

can cover the application requirements of an average of three compressors with fixed pressure settings.

Intuitive operation:

- Switching between the presets

with a simple press of a button.

- Pressure adjustment with three simple clicks.

- Pressure adjustment in steps of 0.1 bar.

ECO mode: save fuel with

intelligent electronics

Choose a compressor that only runs when you need air.

Our XC2003 control units have an ECO mode. In this software setting, the compressor

automatically switches between load operation and idling or unpressurized mode. In ECO mode, the compressor saves

the compressor saves up to 50 % fuel in some applications compared to normal idle mode.

How does ECO mode work?

If your application involves long periods without air demand, for example when changing the drill rods or when

drill rods or during manual conveying, the compressor switches to idle mode. When the ECO mode function is active, the compressor automatically switches from idling to pressure-free (ECO) mode, thus saving fuel.

fuel in this way. If work continues, an air discharge sensor detects the air requirement of the application

of the application and the control unit initiates the repressurization of the compressor. The automatic

detection function ensures that you can resume work in the shortest possible time.

The XC2003 controller comes with predefined ECO mode settings that you can further customize to your application.

to your application.

- Mounted on supports or loading frame

- Adjustable drawbar

- Support wheel

- Towing eyes (DIN, ITA, NATO, BNA, ball coupling and

car coupling)

- Lighting system for the road

- FleetLink

- Air treatment

- Aftercooler with water separator

- Bypass valve

- PD filter

options

- Equipment for special applications

- Inlet shut-off valve

- Spark arrester

- Cold start

- Filler neck on the aluminum fuel tank

The **Atlas Copco XAVS 378** is a powerful and efficient compressor designed for demanding applications requiring high air flow and variable pressure. Due to its robust design and flexibility, it is used in a wide range of industries that rely on powerful, mobile compressed air solutions. Here are the main industries that use the Atlas Copco XAVS 378:

**Mining and quarrying industry**

The Atlas Copco XAVS 378 is particularly well suited for use in mining and quarrying, as it is optimized for heavy-duty drilling and the operation of large pneumatic tools. Typical applications in this industry are

   - Rock drilling

   - Blasting preparations

   - Material extraction and loading

   - Operation of pneumatic lifting and conveying equipment

**Oil and gas industry**

In the oil and gas industry, mobile compressors such as the XAVS 378 are often used to operate pneumatic tools and support drilling processes. The most important areas of application include

   - Pipeline maintenance and cleaning

   - Operation of drilling equipment

   - Support for oil production

   - Sandblasting work for cleaning and maintaining equipment

**Construction industry**

The construction industry relies on powerful compressors to operate heavy tools such as pneumatic hammers, drilling equipment or concrete compaction machines. The XAVS 378 is particularly suitable for large construction projects and infrastructure work, such as

   - Tunnel construction

   - road construction

   - Bridge and foundation work

   - Building and civil engineering projects

**Road construction and infrastructure projects**

For road construction, the Atlas Copco XAVS 378 is essential as it provides enough compressed air to power asphalt breakers, drills and other pneumatic tools. Typical applications include:

   - Road demolition

   - Drilling work for foundations

   - Asphalt processing

   - Road infrastructure installation

**Power generation and wind power**

In the energy and wind power industry, the Atlas Copco XAVS 378 is used for the maintenance and operation of plants. Compressed air is required in this industry for

   - Maintenance and repair of wind turbines

   - Operation of compressed air equipment in power plants

   - Support for the installation of large energy systems

**Shipbuilding and shipyards**

The shipbuilding industry uses the XAVS 378 for various applications, particularly in the maintenance and construction of ships. Typical applications include:

   - Sandblasting for cleaning ship hulls

   - Operation of pneumatic tools in ship construction

   - Maintenance and repair work on ship propulsion systems and decks

**Sandblasting technology and surface treatment**

The XAVS 378 is often used in surface treatment, especially sandblasting, where high air flow and constant pressure are required. This compressor performance is ideal for:

   - Removing rust, paint and dirt from metal and concrete surfaces

   - Cleaning bridges, building facades and industrial plants

   - Preparing surfaces for coatings

**Tunnel construction and drilling technology**

In tunnel construction and drilling technology, the Atlas Copco XAVS 378 is used to operate drilling equipment and to ventilate tunnels. Thanks to its high air flow rate and flexible pressure control, it is suitable for demanding construction projects where precision and high performance are required.

**Rental and hire companies**

Rental and hire companies also use the Atlas Copco XAVS 378 frequently, as it offers a versatile solution for various industries. The compressor can be rented for temporary projects such as construction or maintenance work and offers a flexible option for companies that need powerful compressed air solutions without investing in their own equipment.

**Water management and desalination**

In the water industry, the XAVS 378 is used for pump maintenance, cleaning water reservoirs and desalination plants. The compressor can also be used for pressure testing pipelines and tanks, which is essential for the safety and efficiency of these systems.

The **Atlas Copco XAVS 378** is a versatile and powerful compressor that is used in numerous industries where high compressed air performance and flexibility are required. From mining and the oil and gas industry to construction and power generation, this compressor offers a robust and efficient solution for demanding applications. Its mobility, reliability and high performance make it an indispensable tool for companies that rely on compressed air technology.

Find out more XAVS 378
